Anti violence explosion proof telephone

Brief Introduction

The SC-EP01 Anti Violence Explosion Proof Telephone is a durable communication device designed for hazardous environments where flammable gases, dust, or vapors may be present. Built to meet strict international safety standards such as ATEX and IECEx, it minimizes ignition risks through sealed enclosures, spark-resistant materials, and intrinsically safe circuitry. The device is also fully compliant with CE, RoHS, ISO 9001:2008, and TUV certifications.

Categories: ,

Description

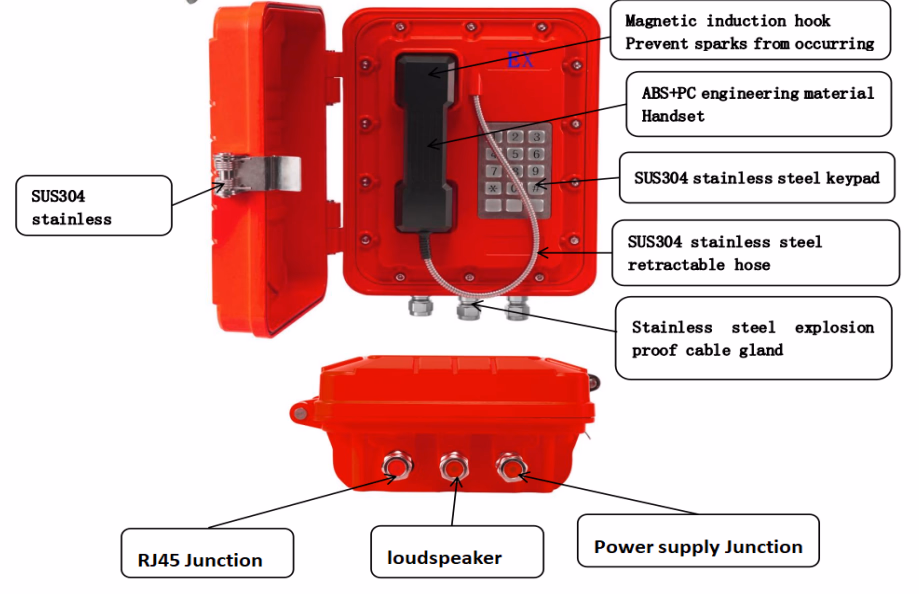

Product Features

  • The sturdy aluminum alloy die-cast material safeguards the system’s internal electronics and is IP67 rated for bomb-proof, waterproof, moisture-resistant, dust-resistant, and freeze-resistant protection.
  • Support both SIP standard network protocol, 36-48V program-controlled switch and optical fiber direct connection With 30W loudspeaker and LED flashing light to achieve alarm and notification broadcasting when a call comes in（optional）.
  • Can pre-store multiple speed dial numbers;
  • Supports ringing count detection, automatically broadcasting after ringing
  • Supports one-key group call broadcasting (no server cooperation required)
  • LED light flashes when a call comes in to avoid mis-picking;
  • Equipped with an intercom button for broadcasting intercom
  • Uses stainless steel keyboard and stainless steel handset pull cord
  • The stainless steel door latch is not easily blown open by the wind when installed outdoors.



Basic Parameters

Size346*301*138MM
Weight8.5KG
Explosion-proof markingEx db ib IIC T6 Gb/Ex tbllIC T80℃ Db
Shell materialAluminum alloy
Keyboard materialstainless steel
colorRed, yellow (optional)
Communication modeSIP , analog, and direct fiber optic
Installation methodWall-mounted
Power supply220V power supply (POE and DC are optional)
Protection levelIP66
Operating temperature-20℃ to +80℃
Operating humidity10-95%



Product Configuration

Network

  • SIP V1 (RFC2543), V2 (RFC3261) protocol
  • backup server
  • proxy servers and peer-to-peer connection modes
  • stationary IP / DHCP / PPPoE dialing
  • TFTP / DHCP / PPPoE client side
  • Telnet / HTTP / HTTPS services
  • network time SNTP protocol
  • DNS SRV (RFC3263)
  • DNS client side, built-in NAT / DHCP service
  • Three DTMF modes: in-band, RFC2833, SIP INFO

Audio

  • Supports broadband high definition coding: L16G and G.722;
  • Support G.711a / u, G.726, G.729a / b, G.723, iLBC and other compression coding;
  • Support VAD (silent dete ction), CNG (comfortable noise);
  • Support AJB (automatic jitbuffer); AEC (acoustic echo cancellation); AGC (automatic gain control)

Special Features

  • One-click IP announcement, long press the hands-free key for about ten seconds and release to automatically announce the IP; (or pick up the handset and input *114* )
  • 3 SIP account registrations. When the first account cannot be registered, it automatically switches to the next account to ensure normal communication.
  • Two emergency keys.
  • Code introduction: *114* automatically announces the IP address, *115* modifies the IP address via the keyboard, *111* restarts the phone.



DIMENSIONS


Q&A

Q:Are there any customized items for explosion-proof phones?
A:Yes, we provide customized services for colors and icons.
Q:How is the product packaged?
A:The packaging material is carton and pearl cotton, carton size: 45*32*20CM.
Q:Are you a factory?
A:Yes, Safecom Technology has its own production factory.
