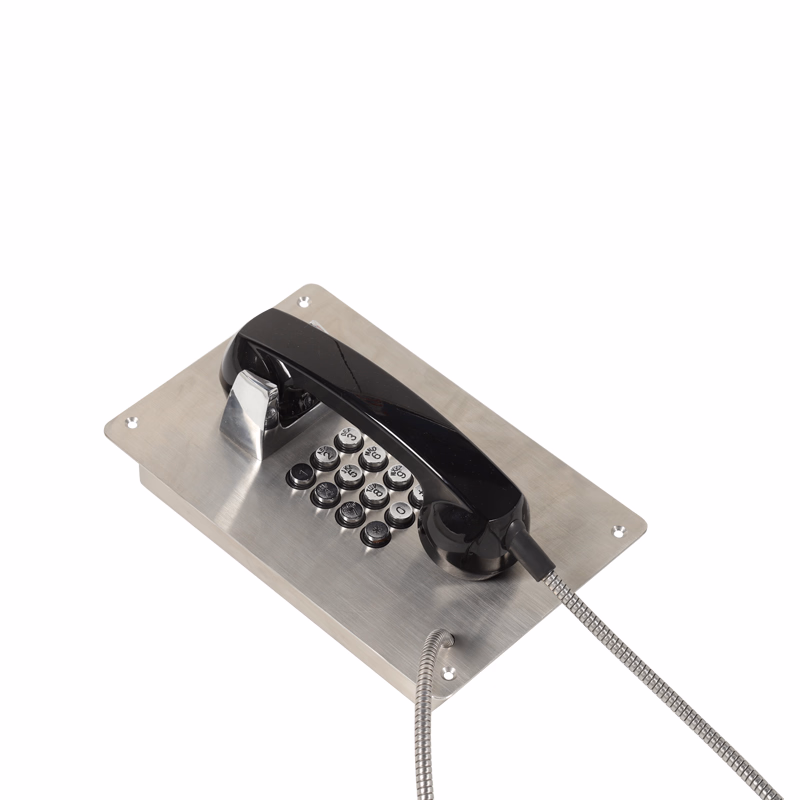

Anti vandal phone

Brief Introduction

The SC-JL01E anti vandal intercom phone is ideal for applications in indoor environments, such as Jail,laboratories, production workshops, banks, etc.The body is made of stainless steel, which is sturdy and resistant to damage.The voice transmission uses the standard IP/RTP protocol, which has strong compatibility and can perfectly compatible with all current mainstream IP PBX/softswitch/IMS platforms based on SIP, such as Asterisk, Broadsoft, 3CX, Elastix, etc.

Category:

Description


Download Brochure&Datasheet

Product Features

  1. Shell: SUS304 stainless steel, surface brushed treatment, strong wear resistance and corrosion resistance
  2. It can store a set of speed dial numbers, and end users can set them up by themselves through IE.
  3. Incoming calls can be automatically answered,after the caller hangs up, this machine will automatically hang up, without occupying the line.
  4. Support the standard SIP protocol.
  5. Intelligent DSS key (speed dial key, intercom key, etc.)
  6. Supports POEor12V power supply, no need for an external power source.
  7. One-click broadcast of IP, with simple operation.

Product Features

  1. Shell: 304 stainless steel, surface brushed treatment, strong wear resistance and corrosion resistance
  2. It can store a set of speed dial numbers, and end users can set them up by themselves through IE.
  3. Incoming calls can be automatically answered,after the caller hangs up, this machine will automatically hang up, without occupying the line.
  4. Support the standard SIP protocol.
  5. Intelligent DSS key (speed dial key, intercom key, etc.)
  6. Supports POEor12V power supply, no need for an external power source.
  7. One-click broadcast of IP, with simple operation.

Basic Parameters

Size260*170*42MM
Embedded size225*136*40mm
Weight2.4KG
Audio output3W
Shell materialstainless steel
Keyboard materialstainless steel
colorSilver
Communication modeSIP protocol, analog
Installation methodWall-mounted
Power supplyPOE and DC are optional

Product Configuration

Network
  • SIP v1 (RFC2543), v2(RFC3261)
  • IP/TCP/UDP/RTP/RTCP
  • IP/ICMP/ARP/RARP/SNTP
  • TFTP Client/DHCP Client
  • Telnet/HTTP Server
  • DNS Client
Audio
  • G.711: 64k bit/s (PCM)
  • G.723.1: 6.3k / 5.3k bit/s
  • G.726: 16k / 24k / 32k / 40k bit/s (ADPCM)
  • G.729 A: 8k bit/s (CS-ACELP)
  • G.729B: adds VAD & CNG to G.729
Special Features
  • Surpport speed dial (built-in speed dial button)
  • Surpport automatic answering (configurable for individual lines)
  • Surpport voicemail (requires server support)
  • Support local three-party conference call

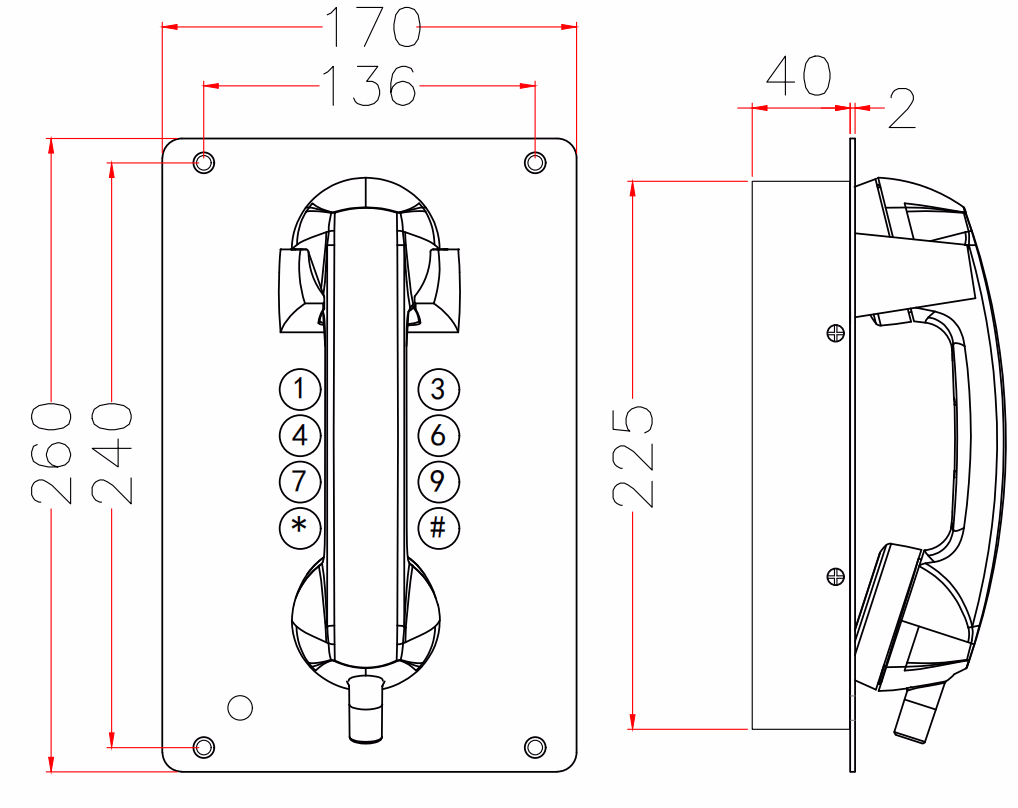

Dimensions


Q: Is this product suitable for embedded installation?
A: Yes, this product offers both wall-mount and recessed installation options.
