Emergency elevator telephone

Brief Introduction

SC-CR01 elevator IP phone is an ideal choice for indoor environments, suitable for laboratories, elevators, pharmaceutical factories, banks and other places. It adopts standard IP/RTP voice transmission protocol and has excellent compatibility. It can perfectly adapt to the current mainstream SIP-based IP PBX/softswitch/IMS platforms, such as Asterisk, Broadsoft, 3CX, Elastix, etc. The stainless steel panel is rugged and flexible, and the number of keys can be set according to needs.

Categories: ,

Description

Download Brochure&Datasheet

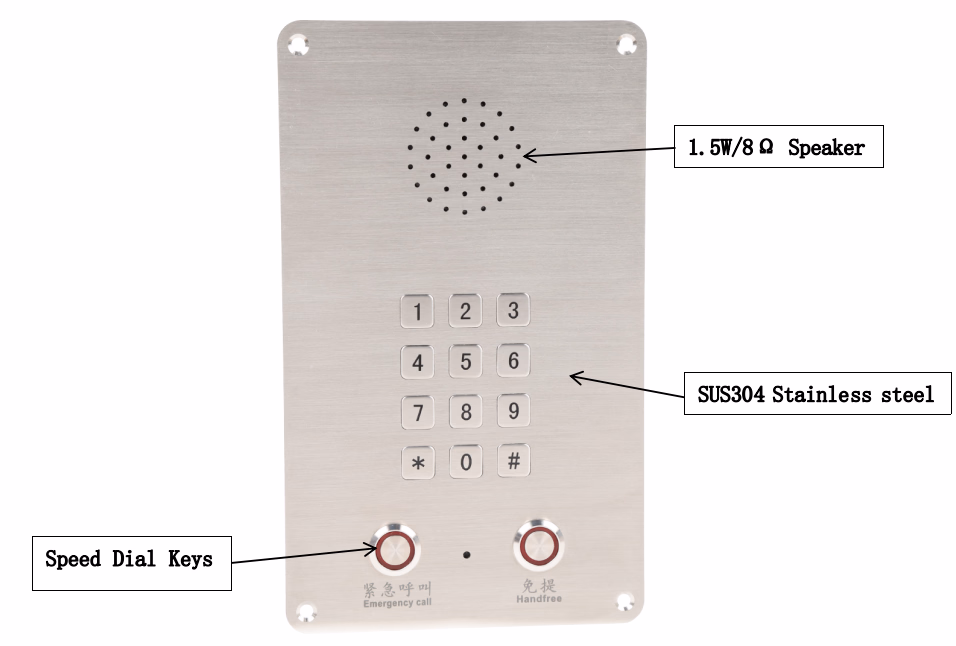

Product features

  1. Shell: SUS 304 stainless steel, surface brushed, wear-resistant and corrosion-resistant.
  2. A set of speed dial numbers can be stored, and end users can set them by themselves through IE browser.
  3. It can be set to automatically answer incoming calls. After the caller hangs up, the machine automatically hangs up to reduce line occupation.
  4. Support standard SIP protocol.
  5. Smart DSS buttons can be installed (for speed dial, one-click intercom, etc.).
  6. Support POE or 12V power supply, no external power supply required.
  7. One-click IP broadcast, easy to operate.

Basic Parameters

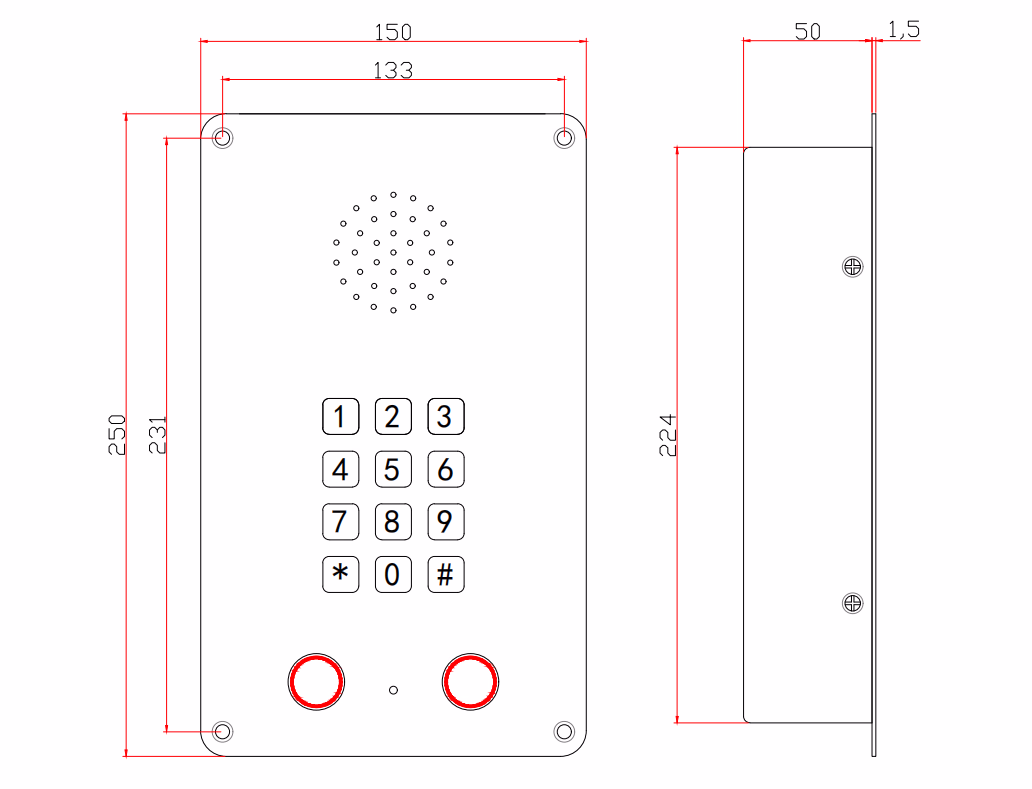

Size250*150*51.5MM
Embedded size224*133*50mm
Weight2KG
Audio output3W
Shell materialstainless steel
Keyboard materialstainless steel
Communication modeSIP protocol, analog
Installation methodWall-mounted
Power supplyPOE and DC are optional

Product Configuration

Network
  • SIP v1 (RFC2543), v2(RFC3261)
  • IP/TCP/UDP/RTP/RTCP
  • IP/ICMP/ARP/RARP/SNTP
  • TFTP Client/DHCP Client
  • Telnet/HTTP Server
  • DNS Client
Audio
  • G.711: 64k bit/s (PCM)
  • G.723.1: 6.3k / 5.3k bit/s
  • G.726: 16k / 24k / 32k / 40k bit/s (ADPCM)
  • G.729 A: 8k bit/s (CS-ACELP)
  • G.729B: adds VAD & CNG to G.729
Special Features
  • Voice Intercom
  • Speed Dial (Speed Dial button)
  • Automatic Answering (Configurable for Individual Lines)
  • Support Voicemail (Requires Server Support)
  • Local Three-Party Conference Call

Dimensions

Q:Does this product support SIP? A: Not only SIP, the product also supports the use of analog signals. Q:Can I modify the panel settings for this product? A:Yes, you can choose different key settings according to your needs, such as 3 * 4 number buttons, etc.
