Description
Main parameters
| Parameter | Value |
|---|---|
| Product model | PT-YS1-EX |
| Protection level | IP66 |
| Communication | Protocol SIP |
| Explosion-proof mark | Ex db IIC T6 Gb |
| Working voltage | DC12-24V |
| Power | 25W |
| Resistance | 8 ohms |
| Dimensions | φ310×H380 |
| Color | Red,gray |
| Humidity range | ＜95% |
| Audio voltage | 70V- 120V |
| Sound | 120db |
| Ambient temperature | ±40℃ |
| Atmospheric pressure | 80～110KPa |
| Frequency response | 100HZ—10KHZ |
Product features
- Built-in SIP motherboard, supports SIP standard network protocol;
- IP66 protection level, waterproof, moisture-proof, corrosion-resistant, and anti-freezing;
- Automatically broadcast the local IP address when powered on.
- Automatically turn on the machine when the ringing is detected.
- Support DC12V-24V power supply.
- Special mounting bracket, easy to install.
Technical Parameters
Network features
- Support SIP V1 (RFC2543), V2 (RFC3261) protocols
- Support backup server
- Support proxy server and point-to-point connection mode
- Support static IP/DHCP/PPPoE dial-up
- Support TFTP/DHCP/PPPoE client
- Support Telnet/HTTP/HTTPS service
- Support network time SNTP protocol
- Support DNS SRV (RFC3263)
- Support DNS client, built-in NAT/DHCP service
- Support STUN intranet penetration
- Support three DTMF modes: in-band, RFC2833, SIP INFO
- Support bridge and router mode
- Web account logout
Audio features
- Support broadband HD encoding: L16G and G.722;
- Support G.711a/u, G.726, G.729a/b, G.723, iLBC and other compression encodings;
- Support VAD (silence detection), CNG (comfortable noise);
- Support AJB (automatic jitbuffer); AEC (acoustic echo cancellation); AGC (automatic gain control)
Working environment
- Temperature: -20 ℃ -70 ℃
- Humidity: 10-95%

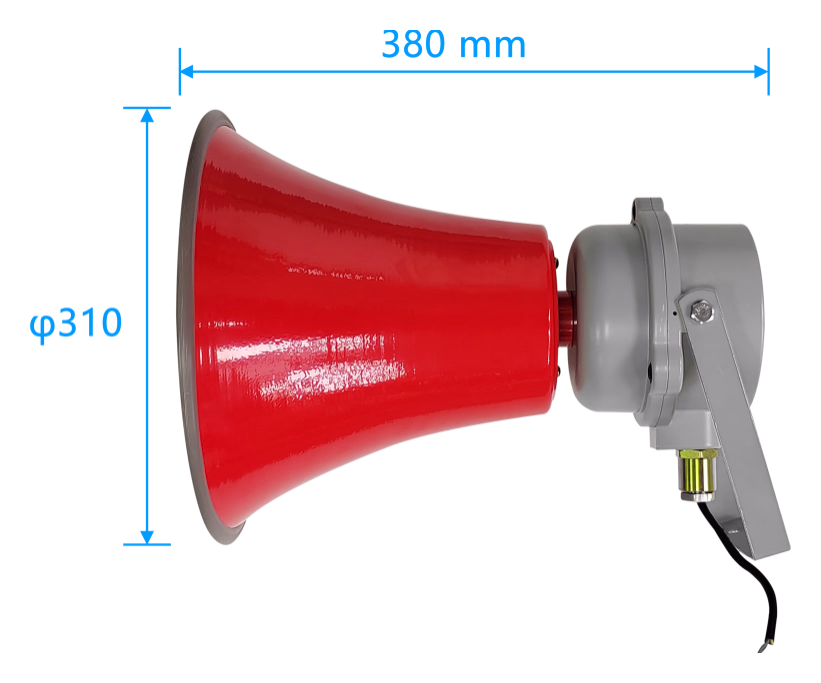

Dimensions
Q&A
Q: What power options does this product offer?
A: We offer 25W and 50W.
