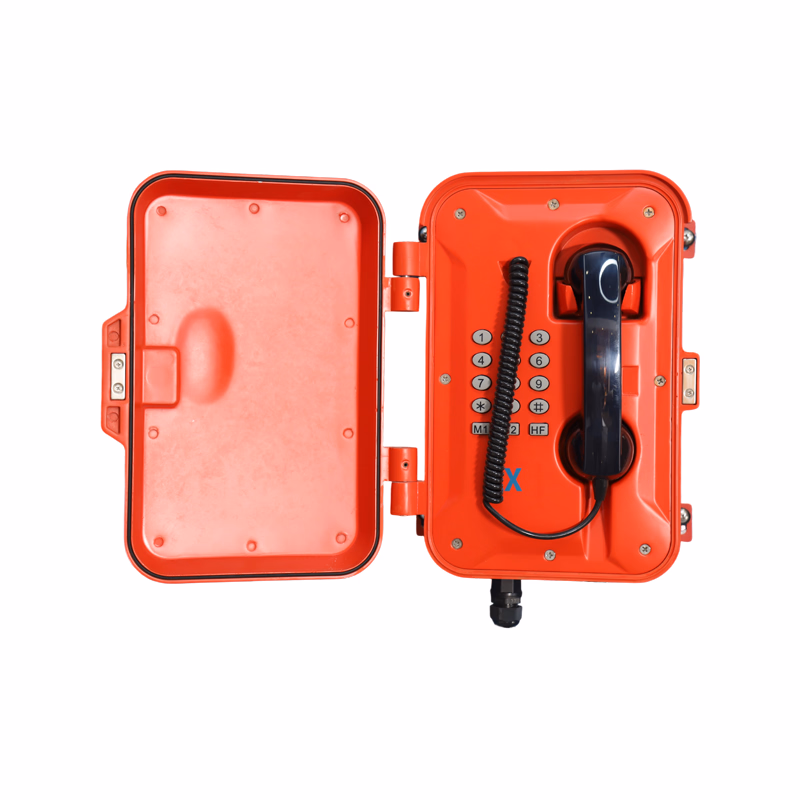

Outdoor weatherproof telephones

Brief Introduction

Designed for harsh conditions, the SC-WR01 outdoor weatherproof telephone ensures reliable communication in hazardous environments including petrochemical plants, mines, and various industrial settings. Wall or pole mounting options are available, and it’s fully certified to CE, RoHS, ISO9001:2008, and TUV standards.

Categories: ,

Description


Downlaod Brochures&Data Sheets

Product Features

  1. Made of composite new materials, with a sturdy shape to resist impact damage
  2. IP67 protection degree, waterproof, moisture-proof, dust-proof, and freeze-resistant;
  3. Supports the SIP standard network protocol.
  4. Can choose to install a 30W loudspeaker and LED flashing light to achieve alarm and notification broadcasting when a call comes in;
  5. Can pre-store multiple speed dial numbers;
  6. Supports ringing count detection, automatically broadcasting after ringingDetect busy tone and automatically hang up the call.
  7. LED light flashes when a call comes in to avoid mis-picking;
  8. Equipped with an intercom button for broadcasting intercom
  9. Various shapes and colors are available for customized.
  10. The alarm light and phone are combined into a single unit, making installation easier than traditional methods.
  11. Magnetic reed hook-switch allows for quick opening and closing.
  12. The outgoing calls can be transferred to external lines such as 911 through the monitoring center.

Basic Parameters

Size356*273*125MM
Weight8KG
Audio output30W
Shell materialComposite new material
Keyboardsilicone
colorRed, yellow (optional)
Communication modeSIP protocol, analog, and direct fiber optic
Installation methodWall-mounted
Power supply220V power supply (POE and DC optional)
Protection levelIP67
Operating temperature-20℃ to +50℃
Operating humidity10-95%

Product Configuration

Network
  • Support SIP V1 (RFC2543), V2 (RFC3261) protocol
  • Backup server
  • Supports proxy servers and peer-to-peer connection modes
  • Support stationary IP / DHCP / PPPoE dialing
  • Support TFTP / DHCP / PPPoE client side
  • Support Telnet / HTTP / HTTPS services
  • Support network time SNTP protocol
  • DNS SRV (RFC3263)
  • DNS client side, built-in NAT / DHCP service
  • Support STUN intranet penetration
  • Supports three DTMF modes: in-band, RFC2833, SIP INFO
  • Support for bridge and router modes
  • Support web account login
Special Features
  • One-click IP reporting, long press the hands-free button for about ten seconds and release to automatically report IP; (or lift the handset and input **9*114*)
  • This device provides 5 SIP account registrations. If one account cannot be registered currently, it will automatically switch to the next account to ensure normal communication.
  • Equipped with two emergency buttons，supporting one-touch calling.

Dimension Diagram


Q:Are there any customized items for the IP67 waterproof telephone?
A:Yes, we provide customized services for colors and icons.
Q：Do you offer international shipping?
A: Yes, we ship globally via reliable logistics partners like FedEx,DHL, and sea freight options for bulk shipments.
