weatherproof subway telephone

Brief Introduction

The SC-WR04 weatherproof subway emergency phone is very suitable for application in noisy environments, such as steel plants, tunnels, docks, residential areas, schools, stations, etc. The SC-WR04 fully complies with CE, Hazardous Substances Restriction Directive, ISO9001:2008, TUV. The phone supports one-click alarm and broadcast, which can effectively ensure the safety of residents in emergencies.

Categories: ,

Description

Product Features

  1. The weatherproof outdoor emergency phone uses new composite materials, which are sturdy in appearance and resistant to violent damage，MTBF reaches 100,000 hours.
  2. Support SIP, analog signal, halo network and other modes.
  3. 220V or other power supplies can be selected.
  4. Multiple sets of shortcut dialing numbers can be saved, and you can call out by pressing the dial button.
  5. Equipped with dual indicator lights, incoming call LED and warning light flashing at the same time.
  6. The shell can be customized in color, labeling, etc.
  7. Support manual global alarm, allowing keyboard to modify IP and gateway settings.
  8. The shell is equipped with a grounding device, which is completely isolated from the internal circuit to achieve a certain degree of electromagnetic shielding, further enhancing safety.
  9. Incoming calls can be automatically answered, and live sounds can be listened to in real time; after the caller hangs up, the device automatically disconnects and releases the line.
  10. Can be connected to 24-60V programmable telephone switch, support network switch or fiber ring network.

Basic Parameters

Size304*185*145MM
Weight4.9KG
Audio output30W（Built-in 3W）
Shell materialComposite new material
Keyboard materialstainless steel
colorRed, yellow (optional)
Communication modeSIP protocol, analog, and direct fiber optic
Installation methodWall-mounted
Power supply220V power supply (POE and DC optional)
Protection levelIP65



Product Configuration

Network
  • SIP V1 (RFC2543), V2 (RFC3261) protocol
  • Supports backup server
  • Proxy servers and peer-to-peer connection modes
  • Stationary IP / DHCP / PPPoE dialing
  • TFTP / DHCP / PPPoE client side
  • Telnet / HTTP / HTTPS services
  • Supportsnetwork time SNTP protocol
  • DNS SRV (RFC3263)
  • DNS client side, built-in NAT / DHCP service
  • STUN intranet penetration
  • three DTMF modes: in-band, RFC2833, SIP INFO
Audio
  • Supports broadband high definition coding: L16G and G.722;
  • Support G.711a / u, G.726, G.729a / b, G.723, iLBC and other compression coding;
  • Support VAD (silent detection), CNG (comfortable noise);
Special Features
  • One-click IP reporting
    • Press the hands-free button for 10 seconds to automatically publish the device’s Internet Protocol Address.
  • Registration status indicator
    • After the SIP account is set up and the registration is successful, the indicator light of the device will light up, indicating that the phone is in a normal state and can be used.
  • Multiple backup SIP accounts
    • This device provides three SIP accounts to switch between each other to ensure normal communication.
  • Automatic response and multiple speed dials
    • The device can be set up to answer automatically, and has hotline and speed dial functions for easy operation.

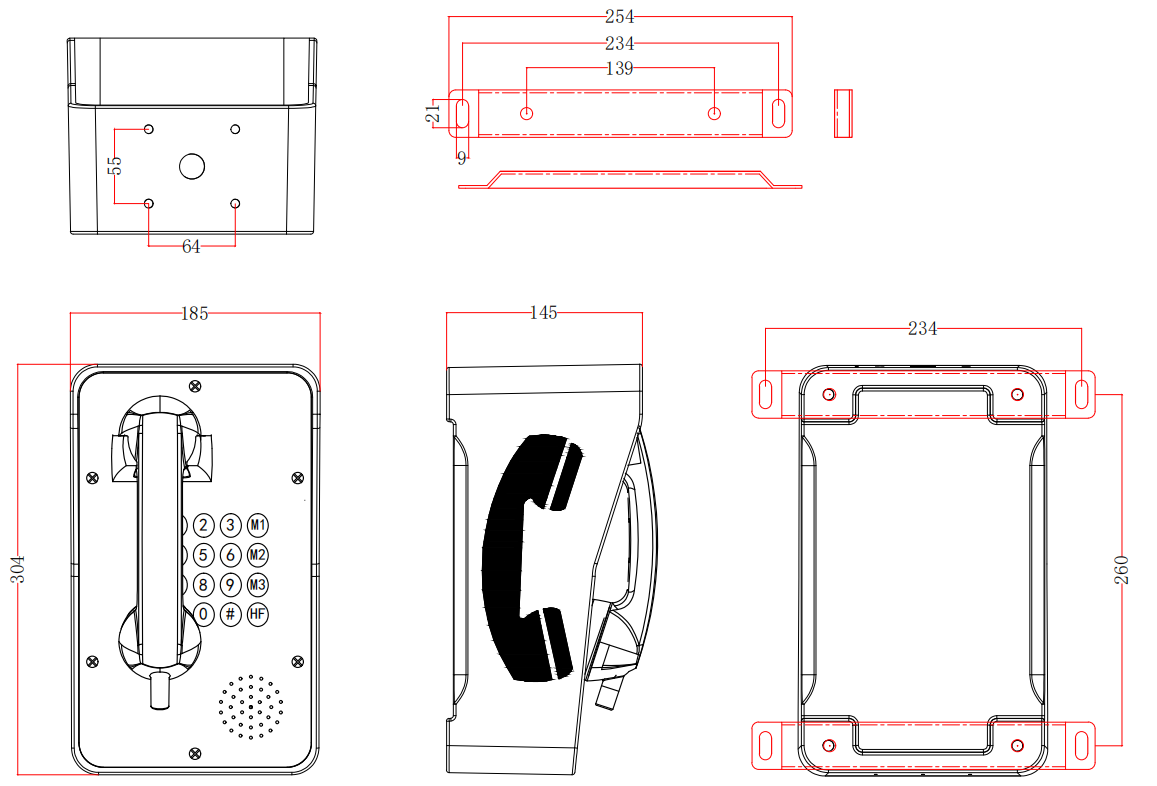

Dimension Diagram



Q:What is the warranty policy for this product?

A:For normal use and non-human damage, our company provides a two-year warranty period. For details, please contact us.

Q:Can this product be customized with panel buttons?

A:Yes，please contact us for details.
